Eloomi - Stratsys integration

How does the integration work?

  • Eloomi e-learning is embedded within an iframe (‘Stratsys external page’) inside Stratsys web application. This url is manually added in administration->menu->external pages
  • Url: https://stratsys.eloomi.com/stratsys/login?company_code=[companycode]
  • Eloomi uses the companycode supplied in the URL above to access Stratsys IdP with the correct CompanyCode
  • User signs into Eloomi with SSO by StratsysIdentityServer and using authorization code flow. A client for Eloomi is configured in platform developers and administrated by us
  • If the user doesn’t already exists in Eloomi, the user is created and assigned to a department in Eloomi that corresponds to the companycode in Stratsys

Eloomi “backbone domain”

  • “Single database-ish”
  • Customer somewhat comparable to customer/tenant in our new Platform. It is what it sounds like and exists at https://[customer].eloomi.com
  • Stratsys is a customer in Eloomi application
  • A customer have one or many departments. A company code in Stratsys maps to a department in Eloomi
  • A user belongs to a customer BUT there is also a unique constraint for e-mail which strongly hints at a single database as well as data isolation per customer does NOT include users (likely) or there is simply a constraint design flaw (less likely?)
  • Stratsys is considered a “social login” in the same way as facebook, google etc
  • However Stratsys architectural design is NOT the same as facebook, google etc. Instead every companycode should optimally be it’s OWN social login the way user ids, usernames and e-mails are validated/stored internally and exposed publicly
  • A user in Eloomi can have one or several “social logins” as connected logins. Both Stratsys and Facebook may exist at the same time
  • A user in Eloomi can set a user password even if this is restricted in Stratsys for this specific company code and regulated through a signed contract between Stratsys and customer
  • Question: If a user entity is NOT data isolated per tenant it suggests there might be a security exploit that a malicious user may be able to somehow gain access to user login for another customer. Does such a risk exist?
  • Logout from Stratsys does NOT trigger logout in Eloomi

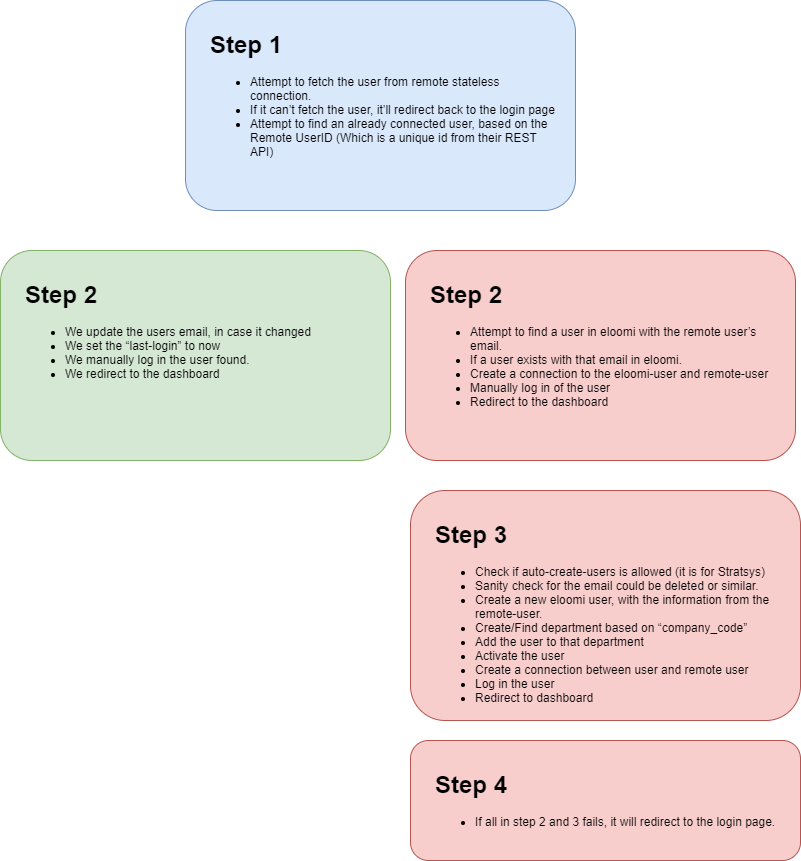

Pseudo code flow

../_images/pseudocodeflow.png
